KITE: Keyframe-Indexed Tokenized Evidence for VLM-Based Robot Failure Analysis

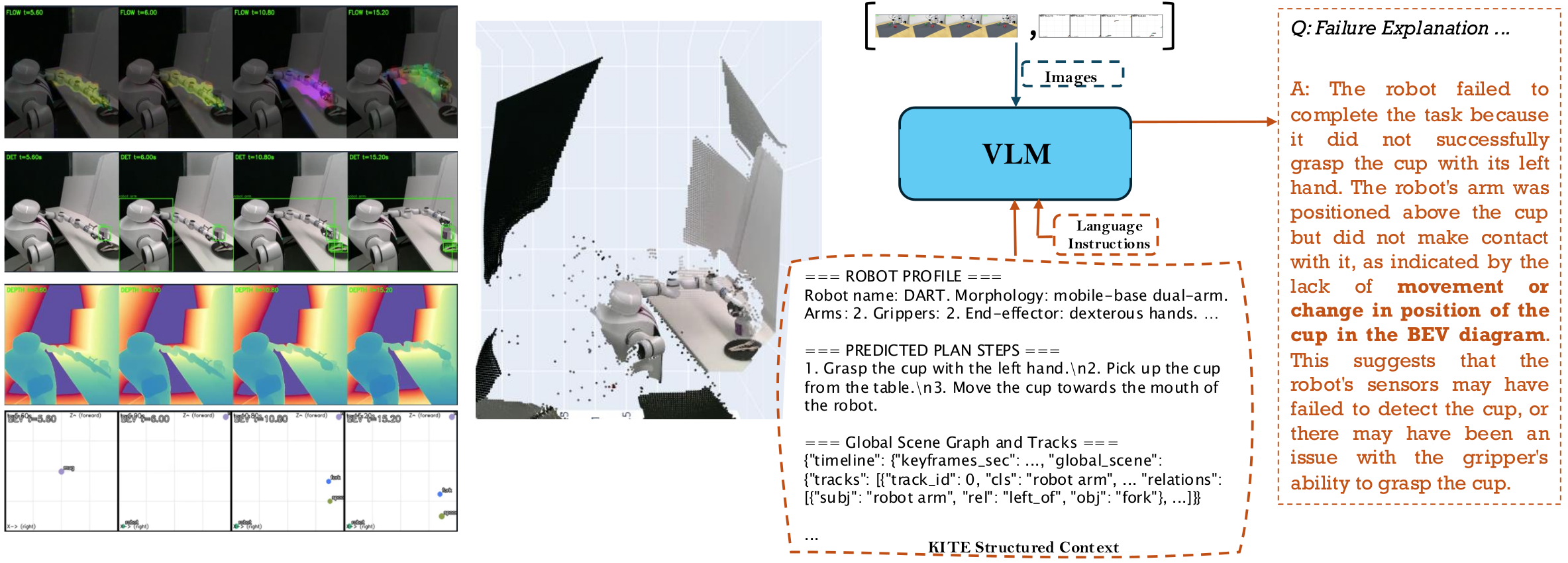

KITE failure explanation on a real dual-arm robot (DART). Left: optical flow, RGB keyframes with detections, depth, pseudo-BEV. Right: VLM failure explanation referencing BEV.

Failure explanation in real-world settings with KITE. The pipeline distills a robot execution video into motion-salient keyframes, each paired with object detections, depth estimates, and a pseudo-BEV schematic. A VLM then produces grounded failure analysis—here referencing the BEV diagram to infer the cup's position remained unchanged.

Abstract

We present KITE, a training-free, keyframe-anchored, layout-grounded front-end that converts long robot-execution videos into compact, interpretable tokenized evidence for vision-language models (VLMs). KITE distills each trajectory into a small set of motion-salient keyframes with open-vocabulary detections and pairs each keyframe with a schematic bird's-eye-view (BEV) representation that encodes relative object layout, axes, timestamps, and detection confidence. These visual cues are serialized with robot-profile and scene-context tokens into a unified prompt, allowing the same front-end to support failure detection, identification, localization, explanation, and correction with an off-the-shelf VLM.

On the RoboFAC benchmark, KITE with Qwen2.5-VL substantially improves over vanilla Qwen2.5-VL in the training-free setting—with especially large gains on simulation failure detection (+36%), identification (+18%), and localization (+33%)—while remaining competitive with a RoboFAC-tuned baseline. A small QLoRA fine-tune further improves explanation and correction quality. We also report qualitative results on real dual-arm robots, demonstrating the practical applicability of KITE as a structured and interpretable front-end for robot failure analysis.

Method

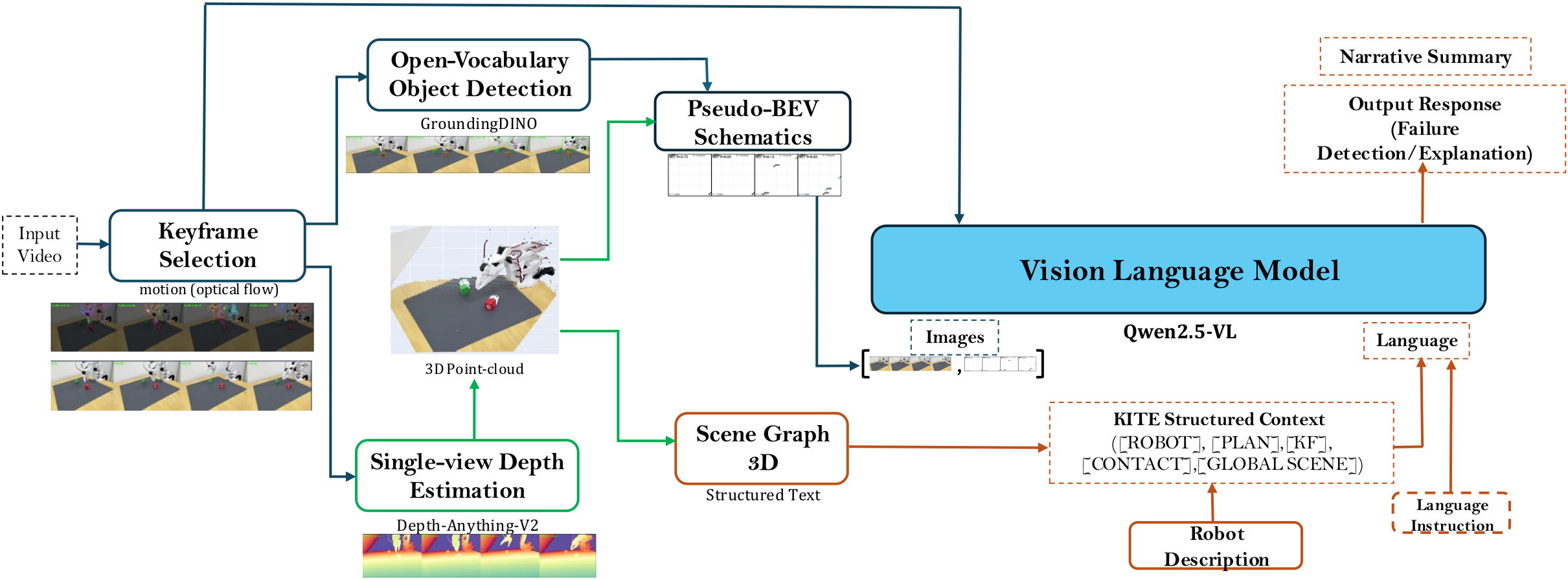

KITE converts a raw execution video into a compact, interpretable evidence bundle for any VLM.

Keyframe Selection

Motion-salient frames selected via optical flow peak detection with temporal non-maximum suppression.

Per-Keyframe Perception

Open-vocabulary detection, single-view depth estimation, and a coarse contact-proxy token per frame.

Pseudo-BEV Schematic

Non-metric top-down layout cues with tracked objects, confidence radii, timestamps, and consistent IDs.

KITE Structured Context


            [ROBOT] morphology, gripper, workspace
             ‖
            [PLAN] numbered plan steps
             ‖
            [KF i_k @ t_k] timestamped keyframes
             ‖
            [CONTACT] Y_k
             ‖
            [GLOBAL_SCENE] tracks & relations

Demo

Watch KITE in action—from raw video to grounded failure explanation.

Results

Evaluated on the RoboFAC benchmark with both simulation and real-world tasks. See the paper for full results.

+36%

Failure Detection
(Simulation)

+18%

Failure Identification
(Simulation)

+33%

Failure Localization
(Simulation)

Training-free gains of KITE + Qwen2.5-VL-7B over vanilla Qwen2.5-VL-7B

Multiple-Choice QA (Success Rate ↑)

Model	Simulation			Real-world
Model	FD	FI	FL	FD	FI	FL
Gemini-2.0	0.48	0.27	0.75	0.60	0.11	0.18
GPT-4o	0.64	0.21	0.71	0.96	0.43	0.52
Qwen2.5-VL-7B	0.52	0.26	0.22	0.83	0.38	0.72
KITE + Qwen2.5-VL-7B	0.88	0.44	0.55	0.84	0.43	0.74
RoboFAC-7B^†	0.91	0.63	0.94	0.80	0.56	0.71
KITE + QLoRA^†	0.93	0.69	0.92	0.89	0.58	0.77
FD = Failure Detection, FI = Failure Identification, FL = Failure Locating. ^† Fine-tuned on RoboFAC.

Qualitative Results

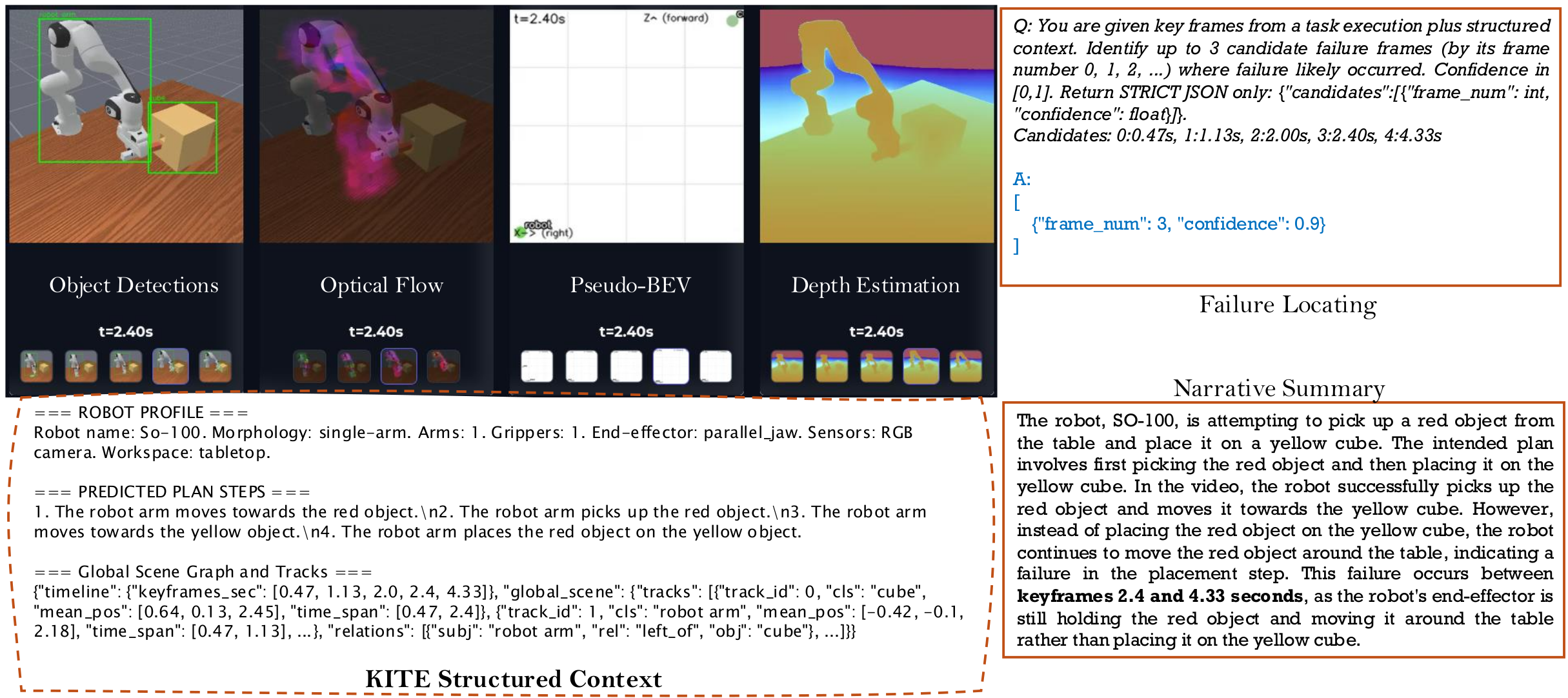

Simulation (RoboFAC). Keyframes with detection overlays, optical flow, pseudo-BEV schematics, and depth estimates. KITE correctly localises the failure frame and generates a grounded narrative summary.

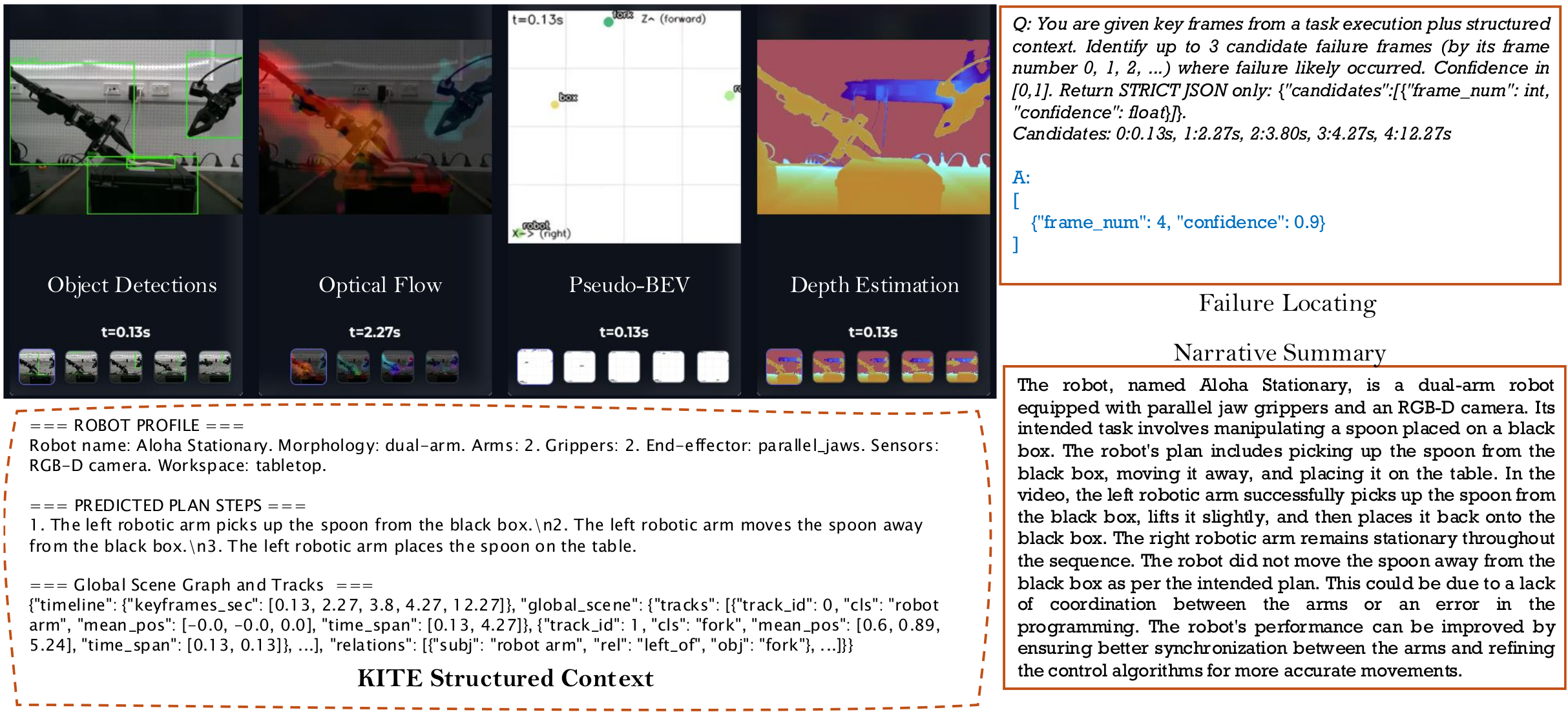

Qualitative results on a real-world ALOHA-2 dual-arm robot, showing failure during a handover task.

Real-world (ALOHA-2). During a bimanual handover the fork is dropped. KITE's structured context enables the VLM to produce a grounded explanation that references arm coordination and the robot's dual-arm morphology.

BibTeX

@inproceedings{hosseinzadeh2025kite,
  title     = {KITE: Keyframe-Indexed Tokenized Evidence for VLM-Based Robot Failure Analysis},
  author    = {Hosseinzadeh, Mehdi and Wong, King Hang and Dayoub, Feras},
  booktitle = {IEEE International Conference on Robotics and Automation (ICRA)},
  year      = {2026}
}
